How Your Code Structure Is Causing Java Memory Leaks

Real Java Memory Leaks From Design Mistakes

Java has garbage collection. But memory leaks still happen and often, they’re your fault.

Not because you forgot to close() a resource or kept an unused object around…

But because the way you structured your classes, reused patterns, or wired your services accidentally created object graphs that GC can’t break.

In this post, we’ll cover some real-world, design-level Java memory leaks you won’t find in textbooks, and how to fix them with actual code.

---

1. Singleton Holding Mutable State

Situation: You use a singleton for a service class, and accidentally store per-user or per-request state in it.

Singleton lives forever. Any object referenced inside it also lives forever. Even if you “null out” local references elsewhere, GC can’t collect the state held inside the singleton.

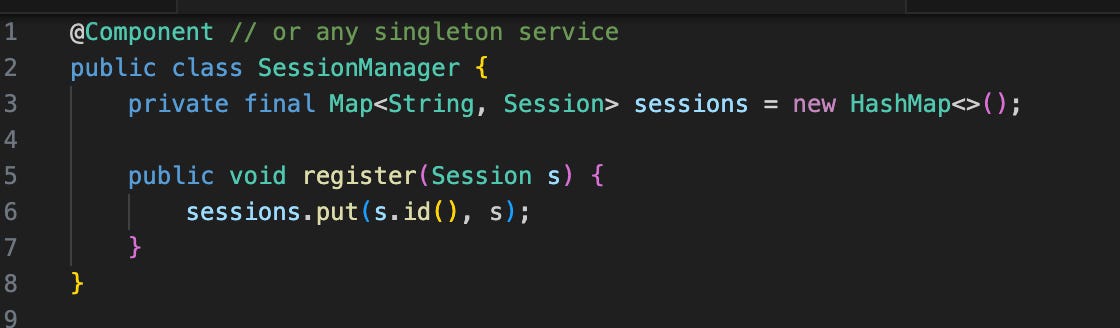

The SessionManager is a singleton, it lives as long as the JVM does. So does everything it references. If you store user sessions here and never clean them, the GC can't collect them, even if users log out.

When it bites:

• Long-running services with lots of users

• Hot-reloading tools (like Spring Dev Tools)

• Stateful services that don’t expire cached state

How to fix:

• Don’t store per-user/request state in singletons

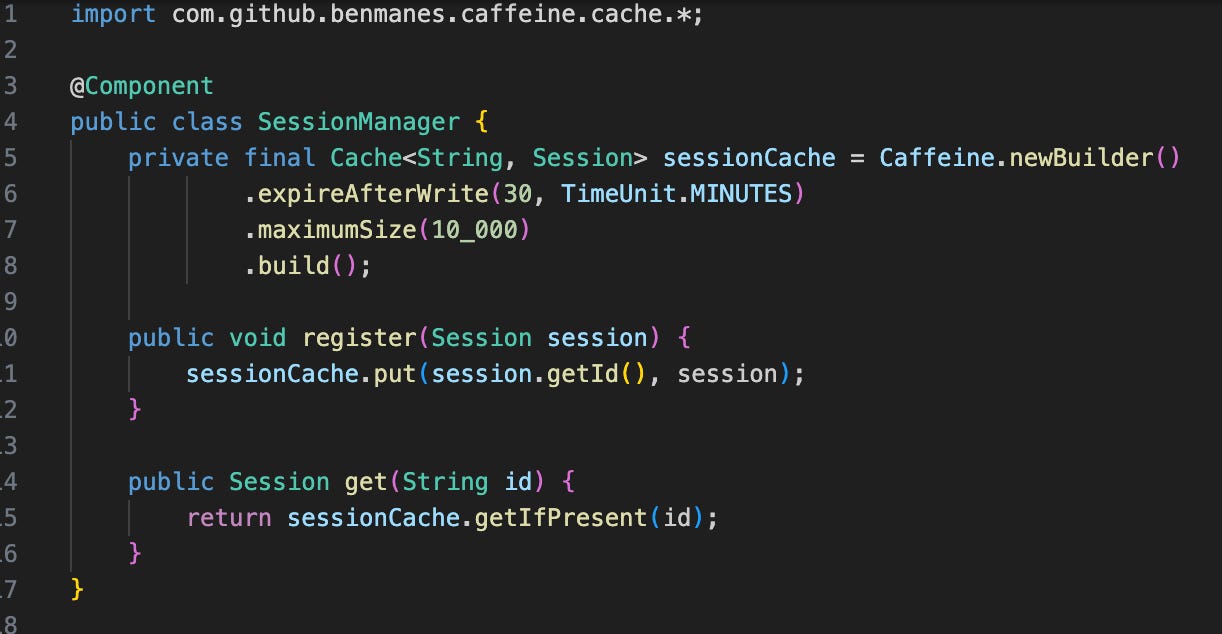

• Use a proper cache like Caffeine with TTL/size limits

• For manual maps, use WeakHashMap or add cleanup logic



Don’t store mutable app state in singletons. Use scoped storage (e.g., per-request, per-session beans in DI).

Singleton ≠ Safe. It’s one of the most common silent killers in Java backends.

---

2. Fluent Builder Pattern Capturing Heavy Context

Situation: Fluent builder pattern where each chained method returns a new modified object.

Captured context (especially in inner classes, lambdas) keeps earlier builders alive. You think you’re being immutable, but you’re actually holding references to the entire chain.

Many builder implementations hold onto all previously set fields, even after calling build(). If you store or reuse builders (or worse, chain them in reactive pipelines), they retain everything passed in. GC sees a live reference, it can’t help you.

When it bites:

• Builders stored for template reuse

• Async pipelines (CompletableFuture, Flux, etc.)

• Complex UI logic that builds and reuses views/data

How to fix:

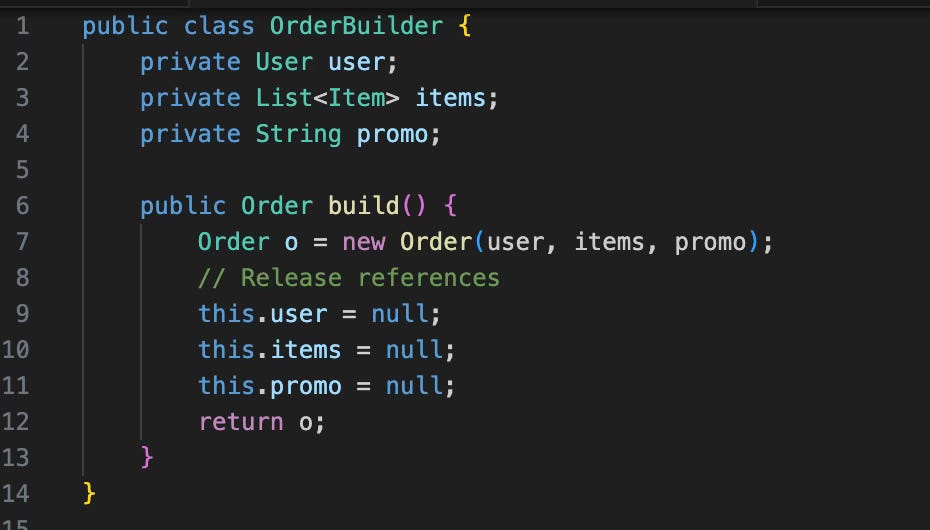

• Null out heavy fields after build()

• Don’t reuse builders that hold references

• Prefer stateless builders or immutables

Or Even better, don’t reuse the builder at all. Let it be a disposable throwaway object. The object you return from build()should be fully immutable, and the builder should just... die.

Fluent APIs can be memory pigs if you’re building a fluent object graph, not just state.

---

3. Decorator/Composite Chains Without Disposal

Situation: You layer multiple decorators over an object for logging, tracing, auth, etc.

Each layer keeps a ref to the inner layer. If the top-level object is cached or retained somewhere, all inner layers stay alive ,even if unused.

Each decorator holds a strong reference to the inner one. If the outer decorator is stored in a registry or injected into a singleton bean, every layer underneath stays in memory. You’re accidentally keeping the whole service stack alive.

When it bites:

• Microservices with dynamically created services

• Caching layers that hold entire service graphs

• Plugin systems using deep composition

How to fix:

• Introduce a dispose() method in your decorator chain to release references

• Avoid storing decorated services, decorate at call time

• Use dynamic proxies or AOP instead of manual decorators

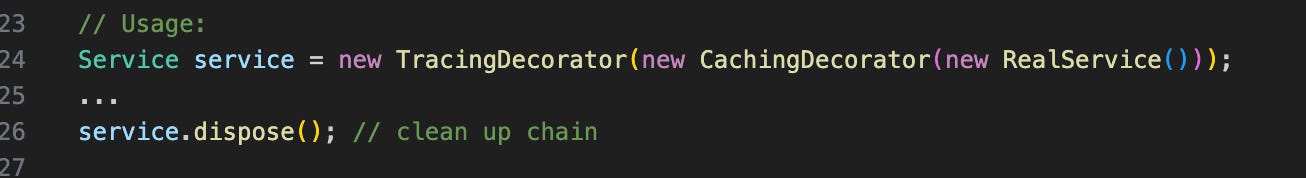

Implement and call dispose()/close() in your decorators to break chains when you're done.

Decorator chains are beautiful in design, deadly in lifecycle management.

---

4. Dependency Injection Elevating Lifetimes

Situation: Spring or Guice injects a bean into a component that was never meant to be long-lived but the container keeps it alive due to dependency resolution.

A “heavy” bean ends up in a long-lived singleton because of a small helper dependency.

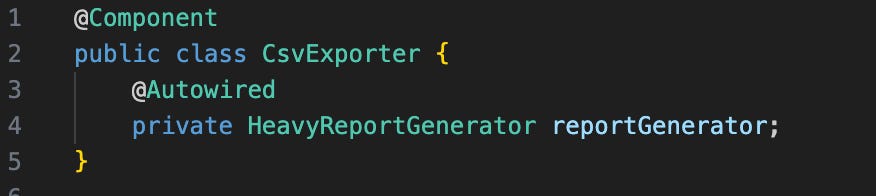

You think reportGenerator is a lightweight helper, but Spring injects it into a singleton bean now everything inside that generator (caches, buffers, native libs) stays forever. This is accidental object promotion via DI.

When it bites:

• Heavy beans injected into lightweight components

• Memory-heavy models like Lucene, TensorFlow, etc.

• Spring Boot apps running scheduled jobs

How to fix:

• Mark heavy beans as @RequestScope, @Prototype, or load them lazily

• Don’t inject heavyweight beans into long-lived components

• Explicitly destroy or release buffers in @PreDestroy

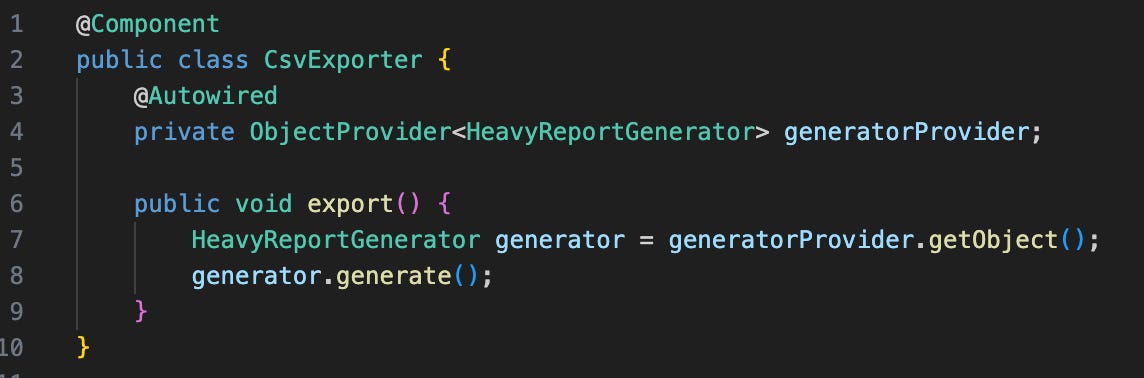

Fix 1: Use @Lazy or provider

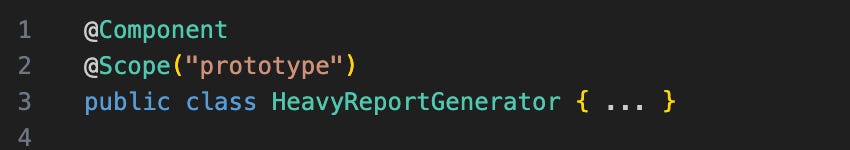

Fix 2: Mark it as prototype

Now it gets created per-use, not shared forever.

Don’t inject heavy services into singleton beans unless necessary. Use lazy loading or provider-based injection.

Just because Spring injects it doesn’t mean it’s safe. Be picky with what you inject where.

---

5. Observer/Event Bus Without Unsubscribe

Situation: Your domain objects subscribe to events (e.g., via an event bus or observer pattern) and forget to unsubscribe.

The event bus holds strong references to observers, which holds domain objects, which keep entire sub-graphs alive.

eventBus.register(order -> cache.update(order)); // never removed

EventBus holds strong references to all registered listeners. If your listener captures something big (like a service or database context), it stays alive even if you think it’s “done”.

When it bites:

• Background workers that never unsubscribe

• GUI elements or mobile activities bound to global events

• Any app using Guava/EventBus/reactive libraries without cleanup

How to fix:

• Always unregister listeners when done (eventBus.unregister(this))

• Use weak references or custom buses with auto-cleanup

• If using reactive APIs, ensure completion/error handlers unsubscribe

Fix 1: Unregister explicitly

public class OrderListener {
    @Subscribe
    public void onOrder(Order o) {
        cache.update(o);
    }
}

// Register
eventBus.register(listener);

// On shutdown or cleanup
eventBus.unregister(listener);

Fix 2: Use weak references for listeners

If using your own event bus or supporting weak refs:

WeakReference<OrderListener> weakListener = new WeakReference<>(new OrderListener());

Or use RxJava/Project Reactor with dispose() on subscriptions:

Disposable sub = orderFlux.subscribe(order -> cache.update(order));
sub.dispose(); // Cleanup

Event-driven is great… until you’re broadcasting into a blackhole of memory leaks.

Memory leaks in Java don’t always come from bad code.

They often come from “good code used in the wrong place”.

The garbage collector only cleans what’s unreachable. Your job is to design for reachability.

Know your lifecycles. Watch your references. Fix your architecture.
